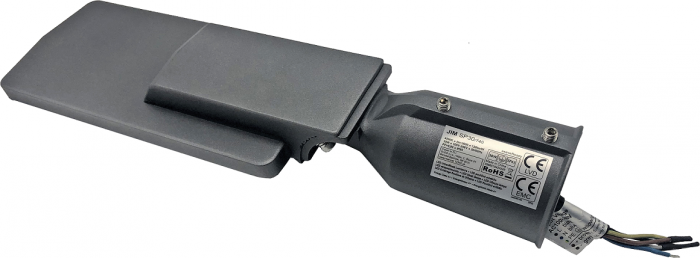

JIM 30W/740 3600 lm 2501
Street Light
Roads • Parks • Squares • Industrial Parks • Cycling Routes • Nichia LED
| Price MOQ: 1 pcs | 89,00 € | Add to List |
| Project Price MOQ: 500 pcs | To get better prices, please Register or Login | |
On-stock 0 pcsPrices without VAT
Basic characteristics
3023050>0.95SPD65IK08LVDEMC
4000lm>3600>70BridgeLux
SMD3030130 lm/W<0.1s
SMD3030130 lm/W<0.1s
1 = excellent visual comfort
Bulb
equivalent = 3600 lm
equivalent = 3600 lm
Technical specifications
| Segment of use: | Urban |
|---|---|
| Designed for use: | Exterior, Streets |
| Manufacturer: | SLOS Import |
| Power consumption: | 30 W |
| Supply voltage: | AC ~ 230 V / 50 Hz |
| Input current Imax: | 0,130 A |
| Chip name/manufacturer: | BridgeLux |
| Chip type: | SMD3030 |
| Chip luminous efficacy: | 130 lm/W |
| System luminous efficacy: | 120 lm/W |
| Power factor (PF): | >0,95 |
| Degree of protection: | IP65 |
| IK: | 08 |
| Protection class: | Simple |
| Working temperature: | -20 ... 45 °C |
| Declaration of Conformity: | CE LVD, CE EMC |
| Color temperature: | 4 000 °K |
| Luminaire Luminous flux: | >3 600 lm |
| Color rendering index: | Ra > 70 |
| Luminous flux distribution: | Wide flood (Floodlight >45°) |
| Dimmable: | Yes (with accessories) |
| esave Ready: | esave by SLOS |
| The time at which the light comes on: | 0,1 s |
| Product dimensions: | 425 × 117 × 76 mm |
| Weight netto: | 1.18 kg |
| Body color: | Grey |
| Mounting methods: | Pole-mounted, boom-mounted, bracket-mounted |
| Warranty: | 2 y. standard 3 y. prolonged 5 y. project |
| Weight brutto: | 1.4 kg |
| Weight carton: | 16.8 kg |
| Pcs in package: | 1 |
| Pcs in carton: | 12 |
